| Noctua NF-A6x25 FLX on Classic II - Any way to avoid soldering? | |
| Posted by: foxtrot81 on 2023-10-19 08:05:23 I want to upgrade the fan on my Classic II. I bought a Noctua NF-A6x25 FLX but want to avoid any soldering, is this possible? I've found this: 'The FLX comes with a molex connector to connect to the hard drive power cable' -> Does it mean I can connect and power from the drive instead of soldering back to the original power cables? - I'm NOT using the internal drive. Any tips welcomed 😀 | |
Posted by: Phipli on 2023-10-19 08:59:44I want to upgrade the fan on my Classic II. I bought a Noctua NF-A6x25 FLX but want to avoid any soldering, is this possible?The stock fans are usually quality parts, so the best option is to put a little oil in the bearing and clean the dirt off the blades and keep using the stock one. | |
Posted by: joshc on 2023-10-19 09:05:02The stock fans are usually quality partsNot sure that is the case with the Classic / Classic II - the fans in those do tend to be quite noisy even after oiling. Yeah a molex connector would be one way of hooking up the Noctua fan without soldering. | |
Posted by: Phipli on 2023-10-19 09:08:45Not sure that is the case with the Classic / Classic II - the fans in those do tend to be quite noisy even after oiling.The LC ones are OK, so I assumed. No SE fan, but work well enough. | |
Posted by: foxtrot81 on 2023-10-19 12:04:18Not sure that is the case with the Classic / Classic II - the fans in those do tend to be quite noisy even after oiling. Amazing, will try the Molex then! | |
| Posted by: foxtrot81 on 2023-10-19 16:46:04 Noctua has 3000/2400/1600rpm options… would anyone run it at 2400/1600 for lower noise? | |
| Posted by: ymk on 2023-10-19 18:30:55 If you're interested in quieting a Classic II, I sell this air box, which allows you to mount an 80mm fan:

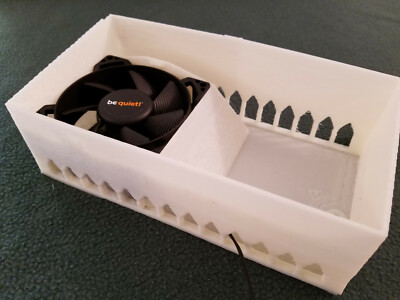

Macintosh Classic I/II air box upgrade | eBayThis 3D printed air box replaces the factory air box in the Classic or Classic II. It mounts a standard 80x25mm fan for improved airflow and reduced noise. In addition to the bottom vents, this air box also draws air in from the front of the case.
www.ebay.com
| |
Posted by: joshc on 2023-10-19 21:45:30Noctua has 3000/2400/1600rpm options… would anyone run it at 2400/1600 for lower noise?Bear in mind you've got the analog board to cool, a lot of heat is generated there - I'd go for higher rpm even if the noise increases a bit. If you're interested in quieting a Classic II, I sell this air box, which allows you to mount an 80mm fan:This is awesome, such a good idea. | |
Posted by: foxtrot81 on 2023-10-20 01:31:29If you're interested in quieting a Classic II, I sell this air box, which allows you to mount an 80mm fan:That's amazing! should it be the 3-pin or 4-pin if I want to power this straight from the hard drive power molex? Would you have a video of the assembly? What's your estimated shipping time to the UK? I'm ready to order! | |
Posted by: ymk on 2023-10-20 01:57:56That's amazing! should it be the 3-pin or 4-pin if I want to power this straight from the hard drive power molex? On a Noctua fan, the third pin (RPM/green) and fourth pin (PWM/blue) won't be used in your Mac. Many Molex adapters will accept either a 3 or 4 wire fan. I don't have an assembly video. It'll ship next day, so expect it to arrive within two weeks. | |
| Posted by: DW1992 on 2023-10-21 11:44:03 JDW did a great video showing the measurable differences between various fans for compact macs. Check it out. | |
| Posted by: finkmac on 2023-10-21 13:04:12 Honestly, why not just learn to solder? It'll help you out in the long run 🙂 | |
