| 2 or 3 chip "low profile" 1mb SIMMs in a Plus? | |
| Posted by: JC8080 on 2022-06-09 19:07:13 I have a Plus with an '030 accelerator, the Killy clip broke years ago and I had someone install some pin headers in place of the clip. The SIMMs are a bit too tall and this keeps the accelerator from seating fully, so it is only working intermittently. I was thinking I might be able to use some of the lower profile 1mb SIMMs with the 2 or 3 horizontal chips, rather than the taller SIMMs with 8 or 9 vertical chips like it currently has. Is there any reason a Plus wouldn't like that type of SIMM? Something like this:

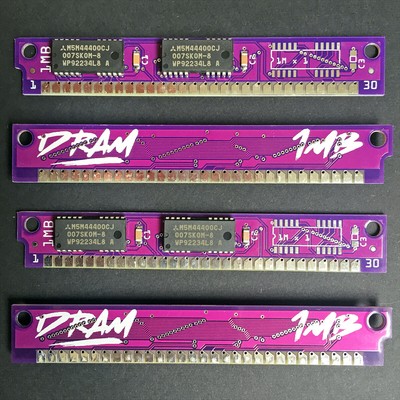

4pcs PurpleRAM new 4MB kit (4x1MB) 60ns 30pin SIMM low profile memory modules | eBay4pcs PurpleRAM newly made 1MB 60ns 30-pinlow profile SIMM. Low latency of 60ns. Compatible with most systems accepting non-parity 1MB 30-pin SIMM modules. 30-pin SIMM. Price is for a 4 x 1MB kit - 4MB total .
www.ebay.com
| |
| Posted by: Byrd on 2022-06-09 20:05:45 Yes, that RAM is basically made for a Mac Plus/SE/Classic. You might find older low profile RAM locally, they're easy to source. | |
| Posted by: unity on 2022-06-09 20:51:34 I have piles or RAM and the low profile stuff is fine to use. I've put a lot in Pluses and SEs, never gave it a second thought really. Like Byrd said, easy to source. | |
| Posted by: JC8080 on 2022-06-10 05:42:45 Great, thank you! | |
