| ADB Optical mouse by Kensington | |||||||||||||||||||
| Posted by: joethezombie on 2018-04-04 16:40:04 Today I was going through boxes from the great haul of 2016 and came across this mouse. It's a Kensington mouse, but it's optical! :-O It looks like a regular Apple ADB cord, and there's no labels on it. It is fantastic! I love this mouse. Anyone know what model it is? I'd like to find more, but Googling Kensington ADB optical mouse doesn't lend any real results.   | |||||||||||||||||||
| Posted by: Dandu on 2018-04-05 05:22:49 I have one like that, but my model is an USB mouse, with an ADB adapter : https://www.journaldulapin.com/2017/04/12/optical-usb-adb/ | |||||||||||||||||||
| Posted by: ArmorAlley on 2018-04-05 05:47:04 It is a nice thing to have. Nowadays, it is as easy to get one of BMOW's USB-ADB adaptors and use your USB mouse of choice. Mine is the Microsoft Intellimouse from 2000. | |||||||||||||||||||
| Posted by: joethezombie on 2018-04-05 08:08:30 Yeah, I bought a Wombat from BMOW a while ago, but I have to say I love living the dongle-free life with this little guy! | |||||||||||||||||||
Posted by: Tarantulas on 2023-12-09 09:54:54Today I was going through boxes from the great haul of 2016 and came across this mouse. It's a Kensington mouse, but it's optical! :-OVery cool! | |||||||||||||||||||
Posted by: Tarantulas on 2023-12-09 10:21:28I have one like that, but my model is an USB mouse, with an ADB adapter : https://www.journaldulapin.com/2017/04/12/optical-usb-adb/Do you know the model number? | |||||||||||||||||||
Posted by: ArmorAlley on 2023-12-09 11:51:16View attachment 16170View attachment 16171Is it just me or does anyone else notice a mismatch between the ADB cable and the mouse? Can it be that an ADB cable was stuck into a laser mouse? Platinum grey was most definitely out of fashion in the late 1990s. This mouse would have had a white or translucent USB cable. Here is a picture from one of the links above for the Mouse   And this picture is from Archive.org for kensington.com for the Mouse•in•a•Box. I bought one of these and it came with a ball, alas. The PDF for the Mouse•in•a•Box Family is also here. Final thought: you might just very well have Kensington's development model of an ADB optical mouse! | |||||||||||||||||||

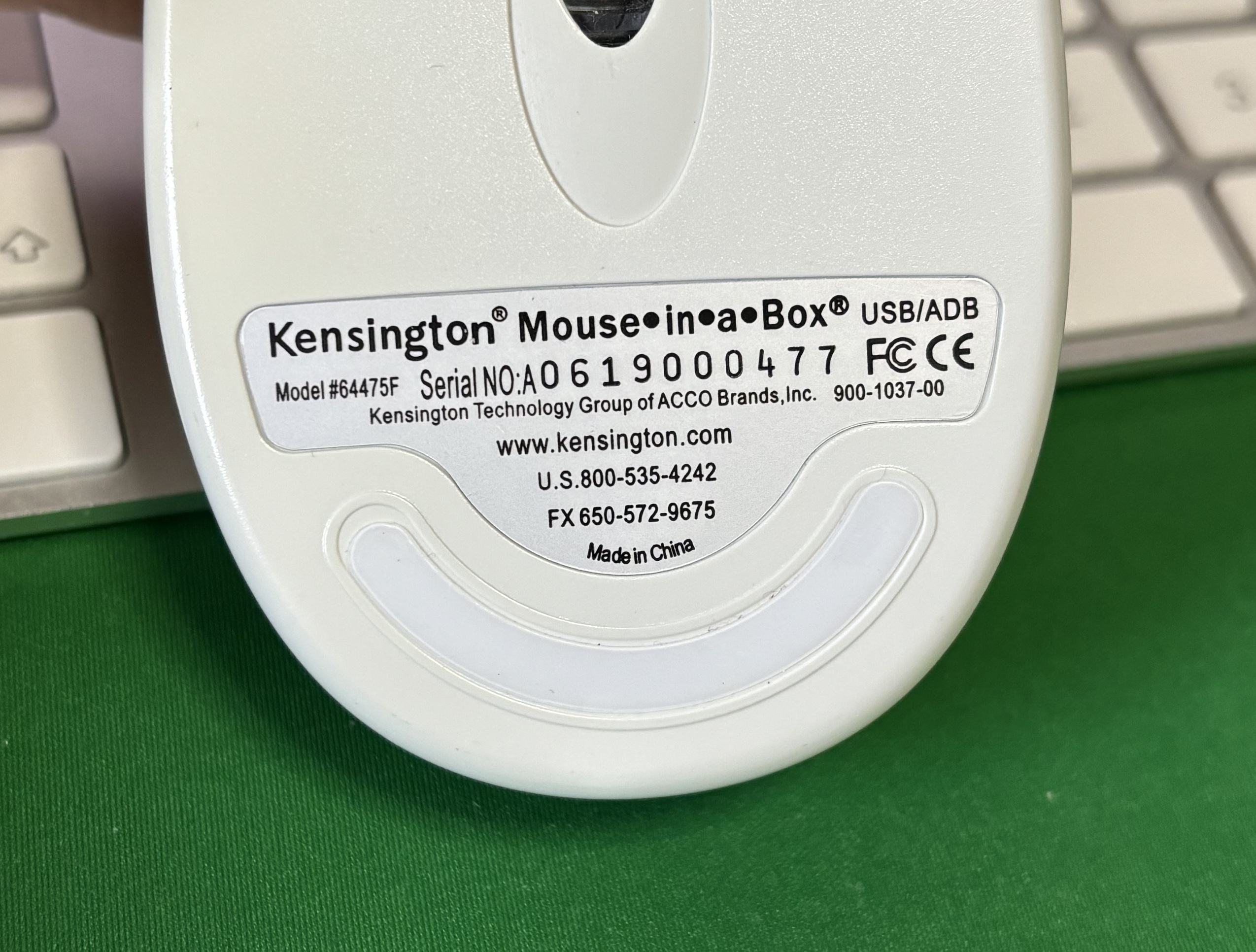

Posted by: Dandu on 2023-12-11 06:25:23Do you know the model number?  | |||||||||||||||||||
| Posted by: olePigeon on 2023-12-11 09:44:25 Interesting that it says USB/ADB. I wonder if there's a built-in USB to ADB adapter inside the housing. | |||||||||||||||||||
Posted by: Tarantulas on 2024-01-04 08:51:41So is the other end USB or ADB? Or does it include an adapter to turn one into the other? | |||||||||||||||||||
| Posted by: Dandu on 2024-01-04 09:58:34 The mouse has a USB-A connector, and there's a proprietary adapter with a female USB connector and a male ADB connector that only works with this mouse.
Une souris optique ADB et USB pour Mac - Le journal du lapinAu début des années 2000, Kensington a proposé une souris pour Mac assez spéciale, capable de fonctionner en ADB mais aussi en USB.
www.journaldulapin.com
| |||||||||||||||||||
Posted by: Tarantulas on 2024-01-04 09:59:37So is the other end USB or ADB? Or does it include an adapter to turn one into the other?Sorry... scrolled up and saw your original post. | |||||||||||||||||||
Posted by: Tarantulas on 2024-01-04 10:00:14The mouse has a USB-A connector, and there's a proprietary adapter with a female USB connector and a male ADB connector that only works with this mouse.That's interesting to know that it only works with that specific mouse. Now I want to see the board inside the mouse LOL | |||||||||||||||||||
| Posted by: Arbee on 2024-01-04 14:00:59 That sounds like some mice in the early 2000s that had a USB-A connector and a works-only-with-that-mouse adapter to PS/2. | |||||||||||||||||||
| Posted by: JustG on 2024-01-04 14:10:55 Didn't Kensington also make a hybrid USB and ADB trackball with a similar adapter? I wonder if the adapter and circuitry are the same between the two products. | |||||||||||||||||||
Posted by: ravuya on 2024-09-26 13:09:50That sounds like some mice in the early 2000s that had a USB-A connector and a works-only-with-that-mouse adapter to PS/2.Yeah, I've seen some PS/2 mice that contain a "USB" microcontroller and optical sensor. They just fall back to PS/2 after a couple seconds of not getting a USB poll, or probably after getting a PS/2 reset. Probably the same thing is happening here, or the ADB cable has a magic resistor in it to hint to the controller which mode to be in. Here's an example one, the PAW3515DB: https://www.alldatasheet.com/datasheet-pdf/pdf/558660/PIXART/PAW3515DB.html | |||||||||||||||||||
Posted by: Powerbase on 2024-09-26 13:20:19Today I was going through boxes from the great haul of 2016 and came across this mouse. It's a Kensington mouse, but it's optical! :-OThat definitely doesn't look stock, most likely modified. It'd be interesting to see what's on the inside. | |||||||||||||||||||
Posted by: daanvdl on 2025-03-07 04:20:10Didn't Kensington also make a hybrid USB and ADB trackball with a similar adapter? I wonder if the adapter and circuitry are the same between the two products.For completeness and future reference, I reverse engineered the pinout back to the two microcontrollers on the mouseboard or the Kensington 64210. The MiniDin8 breakout cable pinout is:
| |||||||||||||||||||
